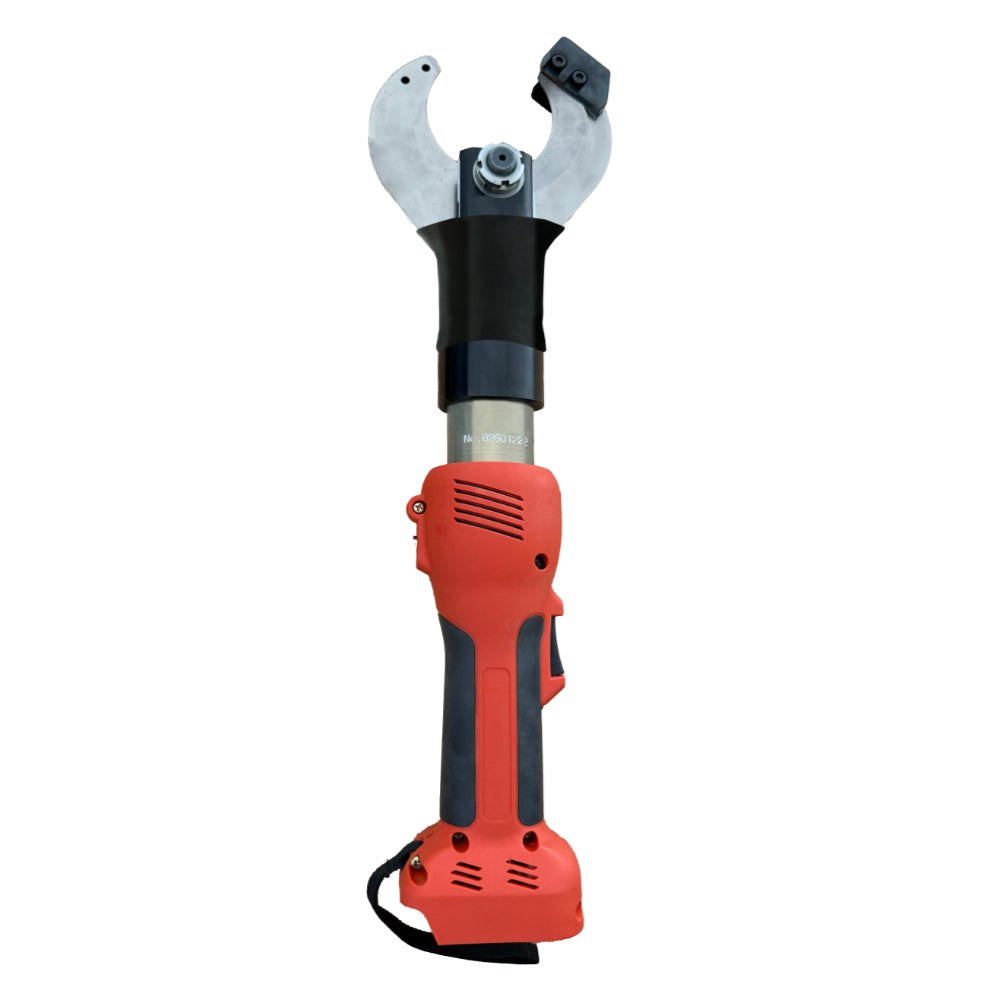

Vitolon V55O-AS-S Battery-Powered Hydraulic Cutter

Vitolon V55O-AS-S Battery-Powered Hydraulic Cutter

Part-No.: 72102500

• On order (Not in stock)

Delivery time: approx. 14 - 21 days from stock, subject to availability

€2.485,00 EUR
€2.485,00 EUR
Currently out of stock

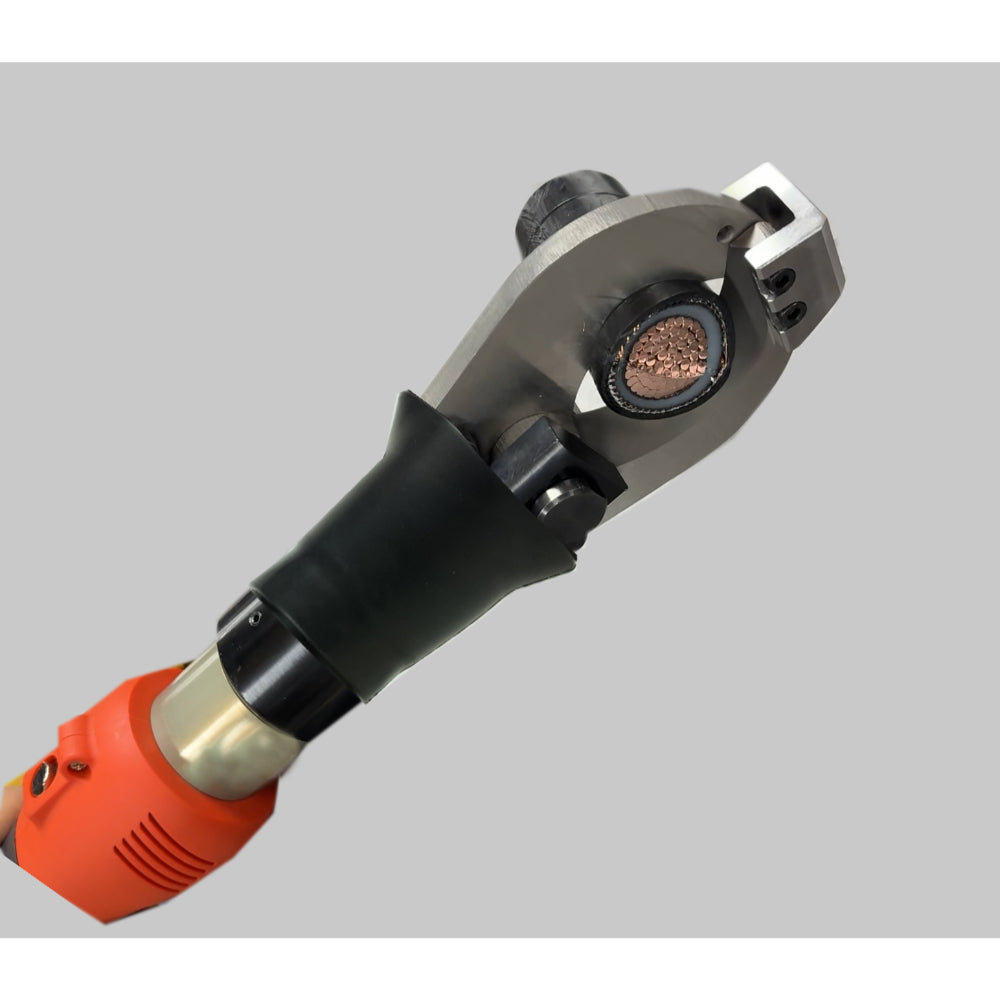

A light, inline-shaped cutter with an open cutting head, designed for one-handed use. Effortless operation due to its ideal geometry and lower weight. Delivers a very clean cut on power cables. Capable of cutting Al cables max. Ø 50 mm (e.g. 4x150 mm² se), and several Cu cables. Aluminium (Class 1, 2) max. Ø 50 mm, and for copper (Class 1, 2, 5) max. Ø 43 mm.

Download Info Sheet (PDF)

View full details

Application

Cutting of power, including class 5 cable.

Material / Conductor size and Diameter

Aluminium

  • Cutting (class 1,2):
    max. Ø 50 mm - up to 4x150 mm² se (0.6/1 kV)
    Ø 47 mm - up to 3x150 sm (0.6/1 kV)
    Ø 37 mm - 1x185/25 mm² rm (0.6/1 kV)
    Ø 46 mm - 1x630/35 mm² rm (6/10 kV)

Copper

  • Cutting (class 1, 2):
    max. Ø 43 mm - up to 4x150 mm² rm (0.6/1 kV)
    max. Ø 46 mm - 3x240 mm² rm (6/10 kV)
    max. Ø 40 mm - 1x300 mm² rm (6/10 kV)
  • Cutting (class 5):
    Ø 34 mm - 1x300 mm² frm (0.75 kV)
    Ø 32 mm - 1x240 frm (0.6 kV), insulated (yellow)

Further Specifications

Force: 60 kN
Opening Width: 55 mm
Battery Voltage: 18 V (compatible with Makita)
Weight: 3.9 kg
Dimensions* L x B x H: 560 x 80 x 116 mm
Cutting Head: open, 180° rotatable
Shape: Inline

* Supplied in a lightweight plastic case (battery and charger not included).

** Cutting H07V-K cable is only permitted to a limited extent or is not intended.
